5. Eigenvalue Analysis#
This notebook investigates the underlying eigenvalue problem to check robustness of the star-shaped PML method. In Chapter 7 of the Bachelor Thesis how precise parameter tuning influenced stability of our method and applied it to setting where previous method have failed. Thereby we proposed how to find a suitable setting even in very unfavourable configurations.
from ngsolve import *
from netgen.geom2d import *
from nonlin_arnoldis import *
from ngsolve.webgui import Draw
import numpy as np
from time import sleep, time
from numpy import array,sqrt,loadtxt
from netgen.occ import *
import matplotlib.pyplot as plt
import scipy as sc
from matplotlib.pyplot import *
from fem1d import geo1d
#%matplotlib widget # pip install ipympl to use that
def creategeo(innershape="circle",outershape="circle",R=1,R2 = 0.9):
if outershape == "circle":
outerobj = Circle(center, R).Face()
outerobj.edges.name = 'Gamma'
outerobj.faces.name ='inner'
elif outershape == "rectangle":
outerobj = MoveTo(-1,-1).Rectangle(2*R,2*R).Face()
outerobj.edges.name = 'Gamma'
outerobj.faces.name ='inner'
if innershape == "circle":
innerobj = Circle(center2, R2).Face()
innerobj.edges.name = 'inner_boundary'
elif innershape == "rectangle":
innerobj = MoveTo(-R2,-R2).Rectangle(2*R2,2*R2).Face()
innerobj.edges.name = 'inner_boundary'
else:
return OCCGeometry(outerobj, dim=2)
return OCCGeometry(outerobj-innerobj,dim=2)
def create_1d_matrices(L,order_1d, maxh_1d):
mesh1d = Mesh(geo1d(0,L).GenerateMesh(maxh=maxh_1d))
fes1d = H1(mesh1d,order=order_1d,complex=True)
u,u_ = fes1d.TnT()
fem1d_mass_surf = array(BilinearForm(u*u_*ds('left')).Assemble().mat.ToDense())
fem1d_mass = array(BilinearForm(u*u_*dx).Assemble().mat.ToDense())
fem1d_mass_x = array(BilinearForm(x*u*u_*dx).Assemble().mat.ToDense())
fem1d_mass_xx = array(BilinearForm(x*x*u*u_*dx).Assemble().mat.ToDense())
fem1d_drift = array(BilinearForm(grad(u)*u_*dx).Assemble().mat.ToDense())
fem1d_drift_x = array(BilinearForm(x*grad(u)*u_*dx).Assemble().mat.ToDense())
fem1d_drift_xx = array(BilinearForm(x*x*grad(u)*u_*dx).Assemble().mat.ToDense())
fem1d_laplace = array(BilinearForm(grad(u)*grad(u_)*dx).Assemble().mat.ToDense())
fem1d_laplace_x = array(BilinearForm(x*grad(u)*grad(u_)*dx).Assemble().mat.ToDense())
fem1d_laplace_xx = array(BilinearForm(x*x*grad(u)*grad(u_)*dx).Assemble().mat.ToDense())
return fem1d_mass,fem1d_mass_x,fem1d_mass_xx, fem1d_drift, fem1d_drift_x, fem1d_drift_xx, fem1d_laplace, fem1d_laplace_x, fem1d_laplace_xx, fem1d_mass_surf
def solve_evp(
maxh = 0.05, #mesh-size
maxh_1d = 0.002, #mesh-size for 1d mesh
order = 1, #fem order
order_1d = 1,
L = 0.2, #length of radial part
center = (0.,0), #center of circle
center2 = (+0.,0.0), #center of inner circle
center_scaling = (0,0),
innershape = "circle", #rectangle|none
outershape = "rectangle", #rectangle
R = 1, #radius of circle
R2 = 0.9, #radius of inner circle
alpha = 20.0,
gamma = 0,
w_shifts = [1+0.5j,3+0.5j],
nefs = 0,
nevals = 100,
krylovdim = 300
):
fem1d_mass,fem1d_mass_x,fem1d_mass_xx, fem1d_drift, fem1d_drift_x, fem1d_drift_xx, fem1d_laplace, fem1d_laplace_x, fem1d_laplace_xx, fem1d_mass_surf = create_1d_matrices(L,order_1d,maxh_1d)
geo = creategeo(innershape,outershape,R,R2)
mesh = Mesh(geo.GenerateMesh(maxh=maxh))
mesh.Curve(2*order)
Draw(mesh)
Gamma = mesh.Boundaries('Gamma')
fes_int = H1(mesh,order=order,complex=True)
fes_surf = H1(mesh,order=order,complex=True,definedon=Gamma)
N = len(fem1d_mass)
print("N = {}".format(N))
fes = ProductSpace(fes_int,*( (N-1)*[fes_surf]))
print("ndof primal: {}".format(fes.ndof))
n = specialcf.normal(2)
v = CoefficientFunction((x-center_scaling[0],y-center_scaling[1]))
ds_g = ds(definedon=Gamma)
p,q = fes.TnT()
p_int,q_int = p[0],q[0]
## original coefficient (-i\omega)^0
W0 =(
grad(p_int)*grad(q_int)*dx
+sum(fem1d_laplace[i,j]*1/(n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_laplace[i,j])>0)
+sum(fem1d_laplace_x[i,j]*2/(n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_laplace_x[i,j])>0)
+sum(fem1d_laplace_xx[i,j]*1/(n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_laplace_xx[i,j])>0)
-sum(fem1d_mass[i,j]*1/(4*n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass[i,j])>0)
-sum(fem1d_drift[i,j]*1/(n*v)*v*p[i].Trace().Deriv()*q[j]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_drift[i,j])>0)
-sum(fem1d_drift_x[i,j]*1/(n*v)*v*p[i].Trace().Deriv()*q[j]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_drift_x[i,j])>0)
-sum(fem1d_drift[i,j]*1/(n*v)*v*p[j]*q[i].Trace().Deriv()*ds_g #T (indices swapped)
for i in range(N) for j in range(N) if abs(fem1d_drift[i,j])>0)
-sum(fem1d_drift_x[i,j]*1/(n*v)*v*p[j]*q[i].Trace().Deriv()*ds_g #T
for i in range(N) for j in range(N) if abs(fem1d_drift_x[i,j])>0)
-sum(fem1d_mass[i,j]*1/(2*n*v)*v*p[j].Trace().Deriv()*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass[i,j])>0)
-sum(fem1d_mass[i,j]*1/(2*n*v)*v*p[j]*q[i].Trace().Deriv()*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass[i,j])>0)
+sum(fem1d_mass[i,j]*(v*v)/(n*v)*p[j].Trace().Deriv()*q[i].Trace().Deriv()*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass[i,j])>0)
-sum(fem1d_mass_surf[i,j]*1/(2*n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass_surf[i,j])>0)
)
## original coefficient \alpha / (\gamma-i\omega+\alpha)
W1 =(sum(-fem1d_laplace[i,j]*1/(n*v)*p[j]*q[i]*ds_g #h6
for i in range(N) for j in range(N) if abs(fem1d_laplace[i,j])>0))
## original coefficient \alpha / (\gamma-i\omega)
W2 =(
sum(fem1d_laplace_xx[i,j]*1/(n*v)*p[j]*q[i]*ds_g #h1
for i in range(N) for j in range(N) if abs(fem1d_laplace_xx[i,j])>0)
-sum(fem1d_mass[i,j]*1/(4*n*v)*p[j]*q[i]*ds_g #h1
for i in range(N) for j in range(N) if abs(fem1d_mass[i,j])>0)
-sum(fem1d_drift_x[i,j]*1/(n*v)*v*p[i].Trace().Deriv()*q[j]*ds_g #h1
for i in range(N) for j in range(N) if abs(fem1d_drift_x[i,j])>0)
-sum(fem1d_drift_x[i,j]*1/(n*v)*p[j]*v*q[i].Trace().Deriv()*ds_g #T #h1
for i in range(N) for j in range(N) if abs(fem1d_drift_x[i,j])>0)
-sum(fem1d_mass[i,j]*1/(2*n*v)*v*p[j].Trace().Deriv()*q[i]*ds_g #h1
for i in range(N) for j in range(N) if abs(fem1d_mass[i,j])>0)
-sum(fem1d_mass[i,j]*1/(2*n*v)*v*p[j]*q[i].Trace().Deriv()*ds_g #h1
for i in range(N) for j in range(N) if abs(fem1d_mass[i,j])>0)
+sum(fem1d_mass[i,j]*(v*v)/(n*v)*p[j].Trace().Deriv()*q[i].Trace().Deriv()*ds_g #h1
for i in range(N) for j in range(N) if abs(fem1d_mass[i,j])>0)
)
## original coefficient (-i\omega)^2
W3 = (
q_int*p_int*dx
+sum(fem1d_mass[i,j]*(n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass[i,j])>0)
+sum(2*fem1d_mass_x[i,j]*(n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass_x[i,j])>0)
+sum(fem1d_mass_xx[i,j]*(n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass_xx[i,j])>0)
)
## original coefficient (-i\omega)^2\alpha/(\gamma-i\omega)
W4 = (
sum(fem1d_mass[i,j]*(n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass[i,j])>0)
+sum(4*fem1d_mass_x[i,j]*(n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass_x[i,j])>0)
+sum(3*fem1d_mass_xx[i,j]*(n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass_xx[i,j])>0)
)
## original coefficient (-i\omega)^2\alpha^2/(\gamma-i\omega)^2
W5 = (
sum(2*fem1d_mass_x[i,j]*(n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass_x[i,j])>0)
+sum(3*fem1d_mass_xx[i,j]*(n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass_xx[i,j])>0)
)
## original coefficient (-i\omega)^2\alpha^3/(\gamma-i\omega)^3
W6 = (
sum(fem1d_mass_xx[i,j]*(n*v)*p[j]*q[i]*ds_g
for i in range(N) for j in range(N) if abs(fem1d_mass_xx[i,j])>0)
)
if abs(gamma)>0:
M0 = BilinearForm(
(alpha*gamma**3+gamma**4)*W0+alpha*gamma**3*W1+(alpha**2*gamma**2+alpha*gamma**3)*W2
).Assemble().mat
M1 = BilinearForm(
(3*alpha*gamma**2+4*gamma**3)*W0+3*alpha*gamma**2*W1+(2*alpha**2*gamma+3*alpha*gamma**2)*W2
).Assemble().mat
M2 = BilinearForm((3*alpha*gamma+6*gamma**2)*W0
+3*alpha*gamma*W1
+(alpha**2+3*alpha*gamma)*W2
+(gamma**4+alpha*gamma**3)*W3
+(alpha**2*gamma**2+alpha*gamma**3)*W4
+(alpha**3*gamma+alpha**2*gamma**2)*W5
+(alpha**4+alpha**3*gamma)*W6).Assemble().mat
M3 = BilinearForm((alpha+4*gamma)*W0
+alpha*W1
+alpha*W2
+(3*alpha*gamma**2+4*gamma**3)*W3
+(2*alpha**2*gamma+3*alpha*gamma**2)*W4
+(alpha**3+2*alpha**2*gamma)*W5
+alpha**3*W6).Assemble().mat
M4 = BilinearForm(W0
+(3*alpha*gamma+6*gamma**2)*W3
+(alpha**2+3*alpha*gamma)*W4
+alpha**2*W5).Assemble().mat
M5 = BilinearForm((alpha+4*gamma)*W3+alpha*W4).Assemble().mat
M6 = BilinearForm(W3).Assemble().mat
matlist = [M0,M1,M2,M3,M4,M5,M6]
else:
M2 = BilinearForm(alpha**2*W2+alpha**4*W6).Assemble().mat
M3 = BilinearForm(alpha*W0
+alpha*W1
+alpha*W2
+alpha**3*W5
+alpha**3*W6).Assemble().mat
M4 = BilinearForm(W0
+alpha**2*W4
+alpha**2*W5).Assemble().mat
M5 = BilinearForm(alpha*W3+alpha*W4).Assemble().mat
M6 = BilinearForm(W3).Assemble().mat
matlist = [M2,M3,M4,M5,M6]
gf = GridFunction(fes,multidim=nefs)
lams = []
for shift in w_shifts: ###shift is now for s=-1j*omega
print("shift = {}".format(shift))
lams.append(1j*np.array(PolyArnoldiSolver(matlist,-1j*shift,krylovdim,nevals=nevals,vecs=list(gf.vecs),inversetype='sparsecholesky',freedofs=fes.FreeDofs())))
return lams

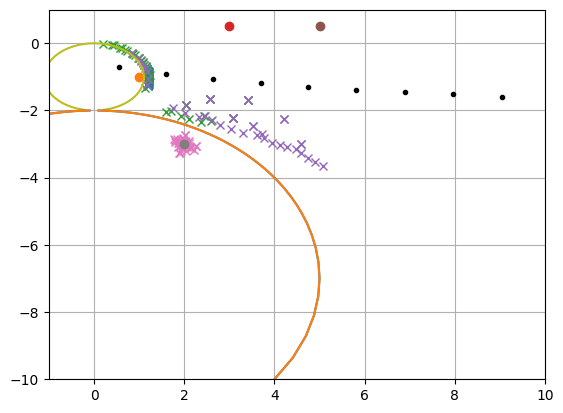

def plot_results(lams, alpha, gamma, mu, w_shifts, R2, reference = True):
figure()
print("gamma =", gamma, "alpha =", alpha)
for shift,lam in zip(w_shifts,lams):
plot(lam.real,lam.imag,'x',label='res, shift = {}'.format(shift))
plot(shift.real,shift.imag, 'o',label ="shift {}".format(shift))
ts = np.arange(-100,100,0.1)
ess_spec_p = 1j*(1/2*(1j*ts-gamma-alpha)+np.sqrt(1/4*(1j*ts-gamma-alpha)**2+1j*ts*gamma))
ess_spec_m = 1j*(1/2*(1j*ts-gamma-alpha)-np.sqrt(1/4*(1j*ts-gamma-alpha)**2+1j*ts*gamma))
plt.plot(ess_spec_p.real,ess_spec_p.imag,label='ess spec +')
plt.plot(ess_spec_m.real,ess_spec_m.imag,label='ess spec -')
#mu= 1j+1 #1j means orthogonal scaling
ess_spec_p = 1j*(gamma*mu*ts-gamma-alpha)/(1-mu*ts)
ess_spec_m = 1j*(gamma*np.conj(mu)*ts-gamma-alpha)/(1-np.conj(mu)*ts)
plt.plot(ess_spec_p.real,ess_spec_p.imag,label='ess spec +')
plt.plot(ess_spec_m.real,ess_spec_m.imag,label='ess spec -')
if reference:
#load reference resonances from file
loaded=loadtxt('dhankel_1_zeros.out')
ref=(loaded[:,0]+1j*loaded[:,1])/R2
plt.plot(ref.real,ref.imag,'.k',label='reference')
plt.xlim((-1,10))
plt.ylim((-10,1))
#plt.legend()
plt.grid(True)
plt.show()
maxh = 0.1 #mesh-size
maxh_1d = 0.03 #mesh-size for 1d mesh
order = 2 #fem order
order_1d = 2
L = 1.0 #length of radial part
center = (0.,0) #center of circle
center2 = (+0.,0.0) #center of inner circle
center_scaling = (0.4,0.4)
innershape = "none" #rectangle|none
outershape = "rectangle" #rectangle
R = 1 #radius of circle
R2 = 0.9 #radius of inner circle
alpha = 10.0
gamma = 2.0
w_shifts = [1-1j,3+0.5j, 5+0.5j, 2-3j] #5-3j, 8-3j, 5-10j, 8-10j]
nefs = 0
nevals = 40
krylovdim = 100
lams = solve_evp(
maxh = maxh,
maxh_1d = maxh_1d,
order = order,
order_1d = order_1d,
L = L,
center = center,
center2 = center2,
center_scaling = center_scaling,
innershape = innershape,
outershape = outershape,
R = R,
R2 = R2,
alpha = alpha,
gamma = gamma,
w_shifts = w_shifts,
nefs = nefs,
nevals = nevals,
krylovdim = krylovdim
)
print(
"maxh = ",maxh,
"maxh_1d = ",maxh_1d,
"order = ",order,
"order_1d = ",order_1d,
"L = ",L,
"center = ",center,
"center2 = ",center2,
"center_scaling = ",center_scaling,
"innershape = ",innershape,
"outershape = ",outershape,
"R = ",R,
"R2 = ",R2,
"alpha = ",alpha,
"gamma = ",gamma,
"w_shifts = ",w_shifts,
"nefs = ",nefs,
"nevals = ",nevals,
"krylovdim = ",krylovdim)
mu = 1j
plot_results(lams, alpha, gamma, mu, w_shifts, R2, reference = True)
used dof inconsistency
(silence this warning by setting BilinearForm(...check_unused=False) )
N = 67
ndof primal: 40897
shift = (1-1j)
1/100
2/100
3/100
4/100
5/100
6/100
7/100
8/100
9/100
10/100
11/100
12/100
13/100
14/100
15/100
16/100
17/100
18/100
19/100
20/100
21/100
22/100
23/100
24/100
25/100
26/100
27/100
28/100
29/100
30/100
31/100
32/100
33/100
34/100
35/100
36/100
37/100
38/100
39/100
40/100
41/100
42/100
43/100
44/100
45/100
46/100
47/100
48/100
49/100
50/100
51/100
52/100
53/100
54/100
55/100
56/100
57/100
58/100
59/100
60/100
61/100
62/100
63/100
64/100
65/100
66/100
67/100
68/100
69/100
70/100
71/100
72/100
73/100
74/100
75/100
76/100
77/100
78/100
79/100
80/100
81/100
82/100
83/100
84/100
85/100
86/100
87/100
88/100
89/100
90/100
91/100
92/100
93/100
94/100
95/100
96/100
97/100
98/100
99/100
100/100
shift = (3+0.5j)
1/100
2/100
3/100
4/100
5/100
6/100
7/100
8/100
9/100
10/100
11/100
12/100
13/100
14/100
15/100
16/100
17/100
18/100
19/100
20/100
21/100
22/100
23/100
24/100
25/100
26/100
27/100
28/100
29/100
30/100
31/100
32/100
33/100
34/100
35/100
36/100
37/100
38/100
39/100
40/100
41/100
42/100
43/100
44/100
45/100
46/100
47/100
48/100
49/100
50/100
51/100
52/100
53/100
54/100
55/100
56/100
57/100
58/100
59/100
60/100
61/100
62/100
63/100
64/100
65/100
66/100
67/100
68/100
69/100
70/100
71/100
72/100
73/100
74/100
75/100
76/100
77/100
78/100
79/100
80/100
81/100
82/100
83/100
84/100
85/100
86/100
87/100
88/100
89/100
90/100
91/100
92/100
93/100
94/100
95/100
96/100
97/100
98/100
99/100
100/100
shift = (5+0.5j)
1/100
2/100
3/100
4/100
5/100
6/100
7/100
8/100
9/100
10/100
11/100
12/100
13/100
14/100
15/100
16/100
17/100
18/100
19/100
20/100
21/100
22/100
23/100
24/100
25/100
26/100
27/100
28/100
29/100
30/100
31/100
32/100
33/100
34/100
35/100
36/100
37/100
38/100
39/100
40/100
41/100
42/100
43/100
44/100
45/100
46/100
47/100
48/100
49/100
50/100
51/100
52/100
53/100
54/100
55/100
56/100
57/100
58/100
59/100
60/100
61/100
62/100
63/100
64/100
65/100
66/100
67/100
68/100
69/100
70/100
71/100
72/100
73/100
74/100
75/100
76/100
77/100
78/100
79/100
80/100
81/100
82/100
83/100
84/100
85/100
86/100
87/100
88/100
89/100
90/100
91/100
92/100
93/100
94/100
95/100
96/100
97/100
98/100
99/100
100/100
shift = (2-3j)
1/100
2/100
3/100
4/100
5/100
6/100
7/100
8/100
9/100
10/100
11/100
12/100
13/100
14/100
15/100
16/100
17/100
18/100
19/100
20/100
21/100
22/100
23/100
24/100
25/100
26/100
27/100
28/100
29/100
30/100
31/100
32/100
33/100
34/100
35/100
36/100
37/100
38/100
39/100
40/100
41/100
42/100
43/100
44/100
45/100
46/100
47/100
48/100
49/100
50/100
51/100
52/100
53/100
54/100
55/100
56/100
57/100
58/100
59/100
60/100
61/100
62/100
63/100
64/100
65/100
66/100
67/100
68/100
69/100
70/100
71/100
72/100
73/100
74/100
75/100
76/100
77/100
78/100
79/100
80/100
81/100
82/100
83/100
84/100
85/100
86/100
87/100
88/100
89/100
90/100
91/100
92/100
93/100
94/100
95/100
96/100
97/100
98/100
99/100
100/100
maxh = 0.1 maxh_1d = 0.03 order = 2 order_1d = 2 L = 1.0 center = (0.0, 0) center2 = (0.0, 0.0) center_scaling = (0.4, 0.4) innershape = none outershape = rectangle R = 1 R2 = 0.9 alpha = 10.0 gamma = 2.0 w_shifts = [(1-1j), (3+0.5j), (5+0.5j), (2-3j)] nefs = 0 nevals = 40 krylovdim = 100
gamma = 2.0 alpha = 10.0
